Fiber Laser Marking Machine CTM-10

Product Model: CTM-10

Product Description:

1. Uses high quality imported parts assembled in China.

2. Full enclosed air-cooled laser system, zero maintainence.

3. Average laser life span of 50,000 hours.

4. Built-in computer system.Table top design. Takes up minimum space.

5. WINDOWS based marking software. Able to mark all WINDOWS compatible fonts and languages.

6. Marking software is compatible with most picture formats like AI, PLT, DXF, BMP,  JPEG etc.

7. Support auto-coding, serial number, batch number, date, barcodes.

8. Able to mark all metal materials and some non-metal materials.

9. Able to mark continuous 360° rings, bracelets and other cylindrical objects with the included rotating device.

Applicable Industry:

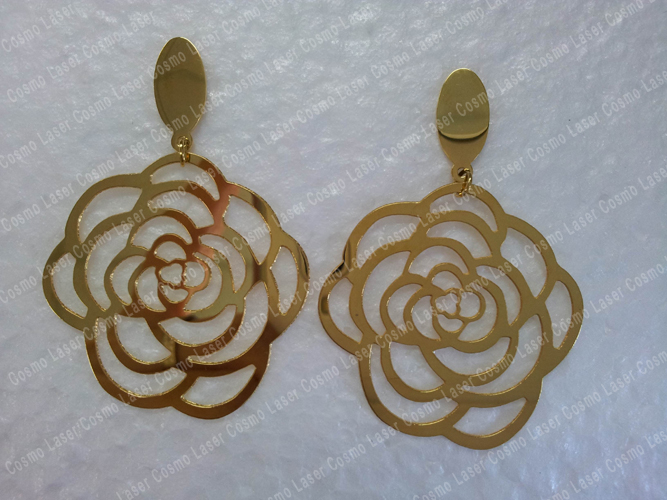

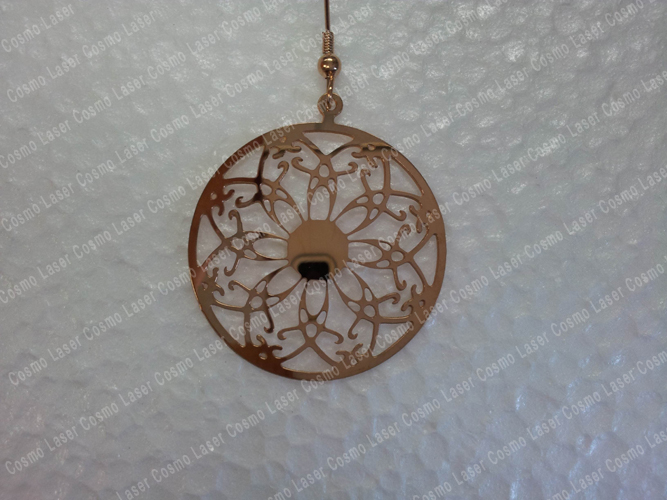

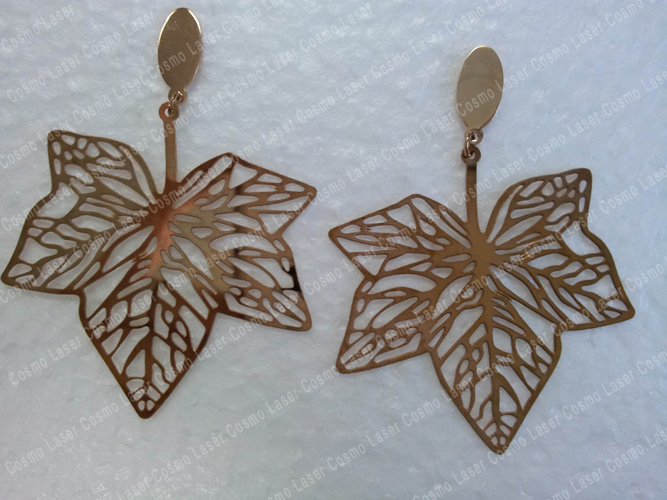

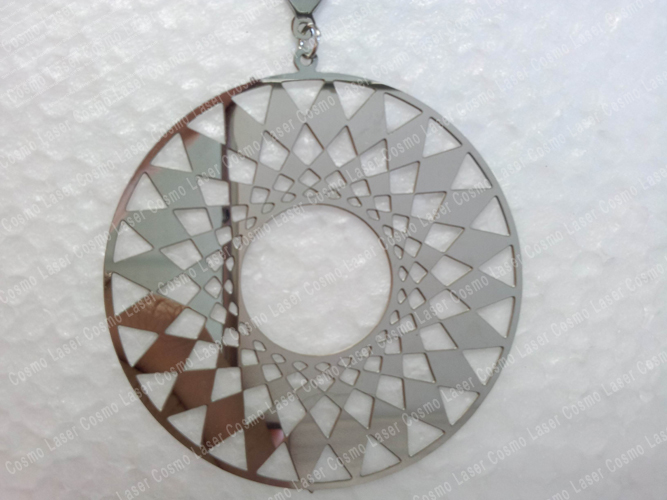

Jewellery accessories, eyeglasses, clocks and watches, hardware, tools, accessories, sanitary ware, ceramic plastic, PVC, phone keypad, electronic components, integrated circuits IC, precision equipment, medical equipment, etc.

Product Specifications:

  Laser source :    Ytterbium Fiber Laser
  Laser power :   10W
  Wavelength :   1064nm
  Beam quality M2 :   1.5
  Laser frequency :   20-60KHz
  Minimum line width :   0.02mm
  Minimum character size :   0.2mm
  Repeatability :   0.001mm
  Marking area :

  100×100(mm) (standard),

  50×50 or 150×150(mm) (optional)

  Cooling system :   Air cool
  Marking table :   X , Y and Z axis table
  Marking Depth :   Up to 0.3mm
  Marking speed :   ≤7000mm / s
  Max.power consumption :    800W
  Power supply :

  220V / 1P (Standard)

  110V / 1P (Optional)

  Machine dimensions(L×W×H) :   410×430×350 (mm)
  Weight,Nett/Gross :   37/52Kg

*Our products undergo continuous improvements. This information is based on current

knowledge. We reserve the right to make changes without prior notice. Errors excepted.
